5.2 API web RESTful (Representational State Transfer)¶

Before introducing RESTful Web APIs specifically, a preliminary discussion about «REST» is needed; specifically, REST is not a protocol, but an architectural style, that is, it represents an abstraction of the components of an architecture within a distributed hypermedia system. The basic principles of this architectural style are:

• Client-Server (the separation of concerns (SoC) paradigm is used): at design level each system must be designed as a module with a specific task; in substance, the Client can only invoke an API made available by a Server which takes care of executing the requested activity, or rejecting it, returning a response message to the Client. The management of exceptions/rejections is delegated to the Client;
• Stateless: communication between a Client and a Server must be stateless between requests; this means that each request originating from the Client must have the set of information needed to allow the Server to understand the request. So, all the necessary data is returned to the Client at the end of each request;
• Cacheable: in this type of architecture the concept of «cache constraint» exists, that is the obligation to label the answers as «cacheable» or not. This allows one of the actors that interpose themselves between Client (including) and Server to store the response in the cache, and thus improve network performance;
• Uniform Interface: in order to have an efficient caching strategy in a network, there is the concept of «constraint of uniformity of the data access interface», that is the obligation that the components involved in the communication use a uniform interface; this constraint has some declinations, such as the concept of «resource»: every information is represented, therefore, as a «resource». Although a resource may change over time, the semantics of its mapping must remain constant: in essence, a resource must be uniquely identified (URI) over time. Another feature is how the resource can be represented in different ways (JSON, GeoJSON, XML, JPG) and this is made possible through the definition of data, metadata and control data. Control data can define the purpose of a message, for example how to manage the cache of a response. Last declination is the one related to the link between resources according to the HATEOS principle (Hypermedia As The Engine Of Application State);
• Layered System: the main concept in this case is that a REST architecture is represented through multiple architectural layers, independent of each other, with specific purposes (e.g., security, balancing, …);
• Code on demand (optional): a REST-based implementation can extend client functionality by executing code (e.g., scripts or applets).

RESTful web APIs are based on HTTP protocol, from which they inherit all the properties, such as the format of the transported data, defined by the «content-type», or the error codes returned by the server (e.g., 400, 500), and the methods (e.g., Get to retrieve data, Post to create resources, Delete to delete resources, …).

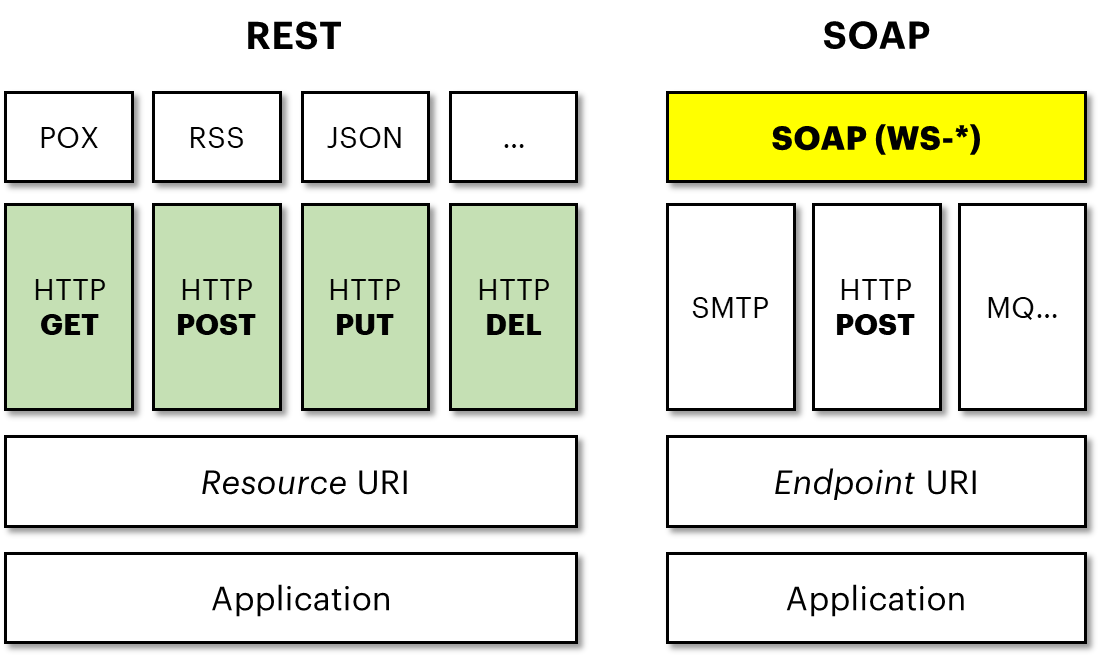

Figure 6 - REST and SOAP compared
